High Frequency Transformer - BaoHui Tech https://sz-baohui.com Professional Transformer Manufacturor Tue, 29 Aug 2023 16:57:38 +0000 en-US hourly 1 https://wordpress.org/?v=6.6.1 https://sz-baohui.com/wp-content/uploads/2022/01/cropped-ia_100000001-32x32.png High Frequency Transformer - BaoHui Tech https://sz-baohui.com 32 32 EPC High Frequency Transformer | EPC系列 高频变压器 https://sz-baohui.com/product/epc-high-frequency-transformer-epc%e7%b3%bb%e5%88%97%e9%ab%98%e9%a2%91%e5%8f%98%e5%8e%8b%e5%99%a8/ Sun, 29 May 2022 15:52:14 +0000 https://sz-baohui.com/?post_type=product&p=1489 FEATURES
  • Wide working voltage range
  • Highpower
  • Small volume
  • High efficiency

OPTIONS

  • Bulk packaging is standard
  • Custom design available

APPLICATIONS

  • AC-DCconverters
  • DC-DCconverters
  • Switch Power supplies
  • Communication equipment
  • Automotive electronics and other fields

The post EPC High Frequency Transformer | EPC系列 高频变压器 first appeared on BaoHui Tech.

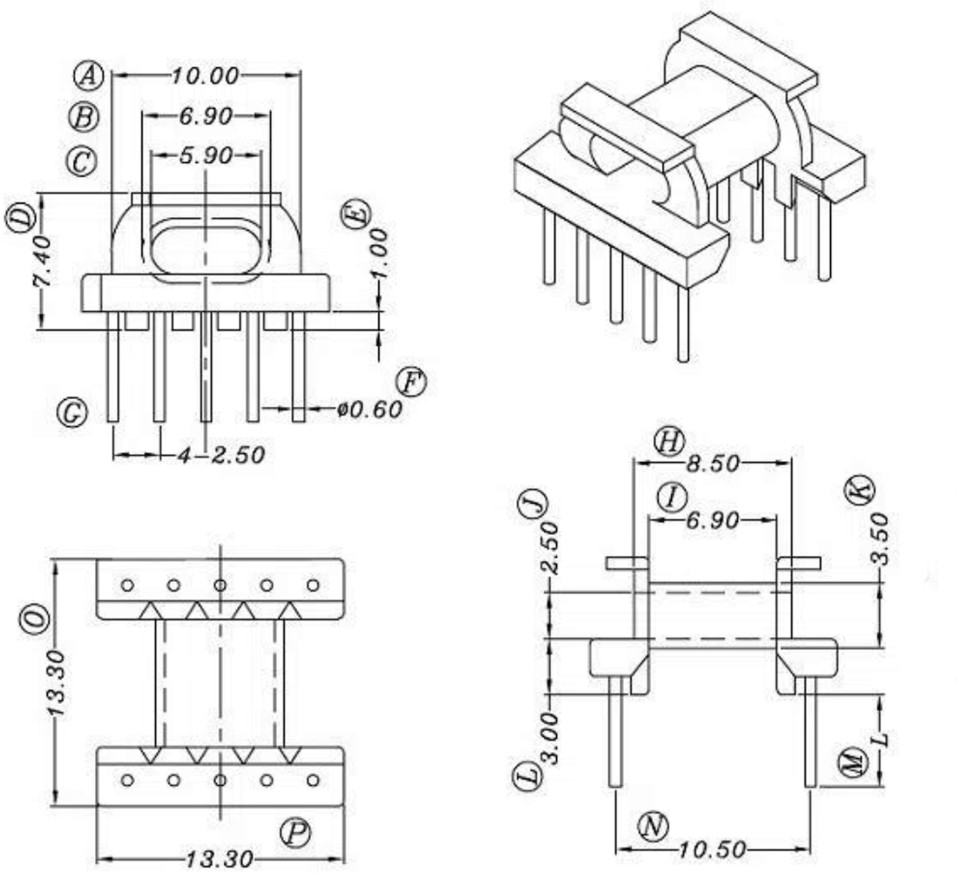

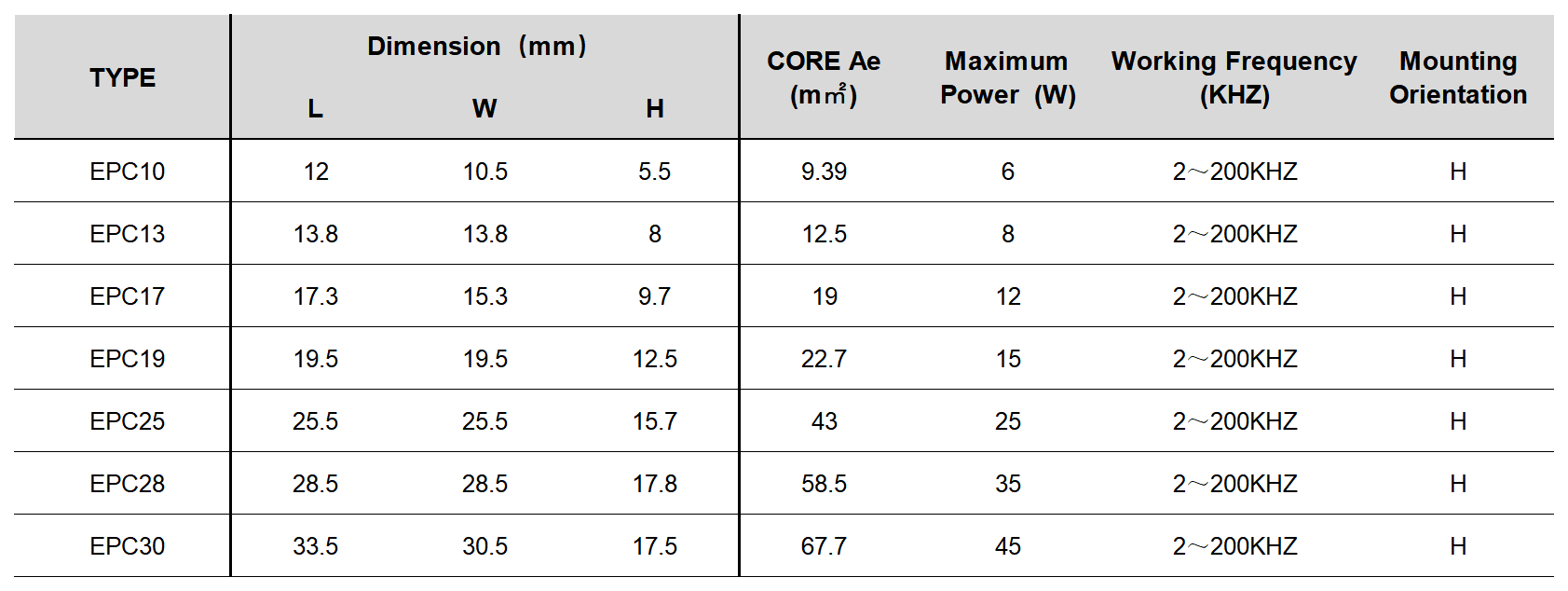

]]> EPC DATA

The post EPC High Frequency Transformer | EPC系列 高频变压器 first appeared on BaoHui Tech.

]]> PQ High Frequency Transformer | PQ系列 高频变压器 https://sz-baohui.com/product/pq-transformer/ Sat, 26 Feb 2022 23:27:10 +0000 https://sz-baohui.com/?post_type=product&p=965

The post PQ High Frequency Transformer | PQ系列 高频变压器 first appeared on BaoHui Tech.

]]>

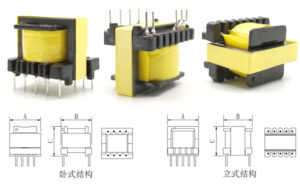

规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm)
A B C 数量 针距(mm) 数量 针距(mm)
PQ20-001 立式插针 23.0 23.0 18.5 6 3.8/5.0 8 3.8/5.0 20.50 Ø0.60
PQ20-002 立式插针 21.0 21.0 21.0 6 3.5/4.3 6 3.5/4.3 19.00 Ø0.70
PQ20-003 立式插针 23.0 23.0 22.5 6 3.8/5.0 8 3.8/5.0 20.50 Ø0.60
PQ20-004 立式插针 21.0 21.0 21.0 6 3.5/4.3 6 3.5/4.3 19.00 Ø0.70
PQ26-001 立式插针 27.0 29.5 21.0 6 3.8/7.7 6 3.8/7.7 25.50 Ø0.70
PQ26-002 立式插针 27.0 37.0 21.0 6 4.50 6 4.50 32.50 Ø0.80
PQ26-003 立式插针 27.0 29.5 23.0 6 3.8/7.5 6 3.8/7.5 25.40 Ø0.60
PQ26-004 立式插针 27.0 29.5 26.0 6 3.8/7.5 6 3.8/7.5 25.40 Ø0.70
PQ32-001 立式插针 33.0 34.0 21.0 6 5.0/7.5 6 5.0/7.5 30.00 Ø0.80
PQ32-002 立式插针 33.0 34.0 27.0 6 5.0/7.5 6 5.0/7.5 30.00 Ø0.80
PQ32-003 立式插针 33.0 34.0 32.0 6 5.0/7.5 6 5.0/7.5 30.00 Ø0.80
PQ35-001 立式插针 35.0 39.0 38.0 6 5.0/10.0 6 5.0/10.0 35.50 Ø0.90
PQ40-001 立式插针 40.0 44.0 44.0 6 5.0/15.0 6 5.0/15.0 38.00 Ø0.90
PQ50-001 立式插针 51.0 51.0 55.0 6 7.4/12.3 6 7.4/12.3 45.70 Ø1.20

The post PQ High Frequency Transformer | PQ系列 高频变压器 first appeared on BaoHui Tech.

]]> POT High Frequency Transformer | POT系列 高频变压器 https://sz-baohui.com/product/pot%e7%b3%bb%e5%88%97-%e9%ab%98%e9%a2%91%e5%8f%98%e5%8e%8b%e5%99%a8/ Sat, 26 Feb 2022 23:20:24 +0000 https://sz-baohui.com/?post_type=product&p=964 EI High Frequency Transformers | EI系列 高频变压器 https://sz-baohui.com/product/ei%e7%b3%bb%e5%88%97-%e9%ab%98%e9%a2%91%e5%8f%98%e5%8e%8b%e5%99%a8/ Sat, 26 Feb 2022 22:30:10 +0000 https://sz-baohui.com/?post_type=product&p=963 Click to check the product PDF: Baohui-EI

FEATURES

  • Wide working voltage range
  • High power
  • Small volume
  • High efficiency

OPTIONS

  • Bulkpackaging is standard
  • Customdesignavailable

The post EI High Frequency Transformers | EI系列 高频变压器 first appeared on BaoHui Tech.

]]> Baohui offers a broad range of EI-TYPE SERIES
6-500W, Economy Audio Dry (NO-DC) Coupling Transformer

APPLICATIONS

  • Telephony
  • Audio coupling / isolating
  • Alarm system

The post EI High Frequency Transformers | EI系列 高频变压器 first appeared on BaoHui Tech.

]]> EFD High Frequency Transformer | EFD系列 高频变压器 https://sz-baohui.com/product/efd-high-frequency/ Sat, 26 Feb 2022 22:03:07 +0000 https://sz-baohui.com/?post_type=product&p=956 Baohui offers a broad range of EFD-TYPE SERIES Transformer
6-50W, Telecom Transformer

FEATURES

  • Wide working voltage range
  • High power
  • Small volume
  • High efficiency

OPTIONS

  • Bulkpackaging is standard
  • Customdesignavailable

APPLICATIONS

  • Drive transformers
  • Main transformers
  • Smoothing chokes
  • General purpose use
  • Switching power supplies
  • AC-DC, DC-DCconverters

The post EFD High Frequency Transformer | EFD系列 高频变压器 first appeared on BaoHui Tech.

]]> Click to check the product PDF: Baohui-EFD

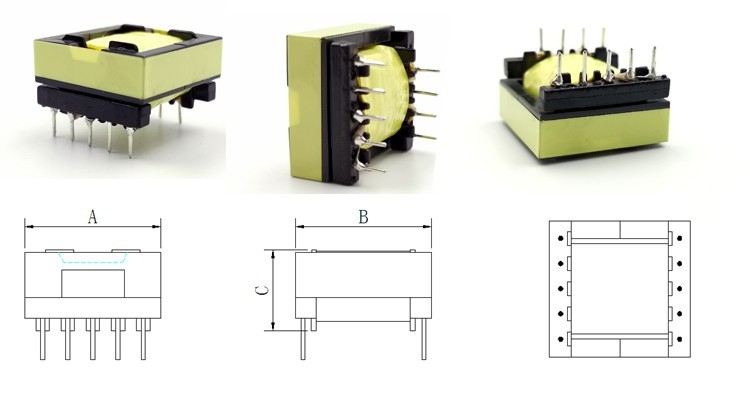

规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm)
A B C 数量 针距(mm) 数量 针距(mm)
EFD15-001 卧式插针 15.5 16.2 8.0 4 3.75 4 3.75 13.70 Ø0.60
EFD15-002 卧式贴片 15.5 21.8 7.5 5 2.54 5 2.54 21.80 SQ0.40*0.70
EFD15-003 卧式贴片 15.5 21.8 7.5 5 2.54 5 2.54 22.50 SQ0.40*0.70
EFD15-004 卧式插针 15.5 17.2 7.5 5 2.54 5 2.54 17.20 SQ0.40*0.70
EFD15-005 卧式贴片 15.5 21.4 7.5 5 2.54 5 2.54 21.80 SQ0.40*0.70
EFD15-006 卧式贴片 15.5 21.8 7.5 5 2.54 5 2.54 22.50 SQ0.40*0.70
EFD15-007 卧式插针 15.5 17.2 7.5 5 2.54 5 2.54 17.20 SQ0.40*0.70
EFD16-001 卧式插针 16.5 20.2 9.0 5 3.00 2 10.00 17.50 Ø0.60
EFD20-001 卧式插针 20.0 20.0 10.2 4 5.00 4 5.00 17.50 Ø0.70
EFD20-002 卧式插针 20.0 20.0 11.0 5 3.70 5 3.70 17.50 Ø0.60
EFD20-003 卧式贴片 21.5 21.0 9.5 5 3.75 5 3.75 25.00 SQ0.40*1.00
EFD25-001 卧式插针 25.5 25.0 12.0 5 5.00 5 5.00 22.50 Ø0.70
EFD25-002 卧式插针 25.5 32.2 14.5 6 3.80 5 3.80 28.60 SQ0.60*0.60
EFD30-001 卧式插针 30.5 31.0 15.7 6 5.00 6 5.00 27.60 Ø0.80



The post EFD High Frequency Transformer | EFD系列 高频变压器 first appeared on BaoHui Tech.

]]> RM transformer | RM系列变压器 https://sz-baohui.com/product/rm%e5%8f%98%e5%8e%8b%e5%99%a8/ Thu, 24 Feb 2022 07:53:42 +0000 https://sz-baohui.com/?post_type=product&p=928 规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm) A B C 数量 针距(mm) 数量 针距(mm) EE05-001 卧式贴片 6.0 5.2 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55 EE05-002 卧式贴片 6.0 5.5 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55 EE08-001 立式插针 8.8 8.0 9.2 3 2.50 3 2.50 6.00 Ø0.50 EE08-002 立式插针 8.8 8.0 10.0 3 […]

The post RM transformer | RM系列变压器 first appeared on BaoHui Tech.

]]>

规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm)
A B C 数量 针距(mm) 数量 针距(mm)
EE05-001 卧式贴片 6.0 5.2 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55
EE05-002 卧式贴片 6.0 5.5 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55
EE08-001 立式插针 8.8 8.0 9.2 3 2.50 3 2.50 6.00 Ø0.50
EE08-002 立式插针 8.8 8.0 10.0 3 2.50 3 2.50 6.00 SQ0.40*0.40
EE08-003 卧式插针 8.8 9.0 9.5 2 5.00 2 5.00 6.80 SQ0.40*0.40
EE08-004 卧式插针 8.8 9.0 9.5 3 2.50 3 2.50 7.00 Ø0.50
EE10-001 立式插针 10.5 10.0 11.0 4 2.50 4 2.50 8.00 Ø0.50
EE10-002 卧式插针 11.0 12.5 11.0 4 2.50 4 2.50 10.50 Ø0.60
EE10-003 卧式插针 11.0 11.5 11.0 2 5.00 2 5.00 9.00 Ø0.60
EE10-004 卧式插针 11.0 11.5 11.0 2 5.00 2 5.00 9.00 Ø0.60
EE10-005 卧式插针 11.0 12.5 13.5 4 2.50 4 2.50 10.40 Ø0.60
EE12-001 卧式插针 12.5 15.0 9.3 2 6.00 2 6.00 12.00 SQ0.50*0.50
EE12.5-001 立式插针 13.0 12.5 9.0 5 2.50 5 2.50 7.50 Ø0.60
EE12.7-001 立式插针 12.8 12.3 11.0 5 2.50 5 2.50 8.50 Ø0.60
EE13-001 立式插针 10.5 12.5 13.0 3 3.00 3 3.00 9.00 Ø0.60
EE13-002 立式插针 13.0 12.5 13.5 5 2.50 5 2.50 8.50 SQ0.50*0.50
EE13-003 立式插针 15.5 16.5 14.5 5 2.50 2 3.00 13.00 Ø0.60
EE13-004 卧式插针 14.0 14.0 13.5 5 2.50 5 2.50 10.30 Ø0.60
EE13-005 卧式插针 14.0 17.8 13.5 5 2.50 4 3.00 15.50 Ø0.60
EE13-006 卧式插针 14.0 19.9 13.8 5 2.70 2 9.00 16.00 Ø0.60
EE14-001 卧式插针 15.0 15.0 8.0 2 6.00 2 6.00 12.00 Ø0.60
EE16-001 立式插针 16.5 12.5 15.0 3 3.00 3 3.00 9.00 Ø0.60
EE16-002 立式插针 16.5 13.1 18.0 5 3.20 5 3.20 10.60 SQ0.50*0.50
EE16-003 立式插针 16.5 12.5 15.0 2 9.00 2 9.00 9.60 Ø0.60
EE16-004 卧式插针 19.5 18.5 16.5 5 3.25 6 3.25 15.50 Ø0.80
EE16-005 卧式插针 16.5 15.0 14.5 4 3.00 4 3.00 11.00 Ø0.60
EE16-006 卧式插针 16.5 16.0 14.5 5 2.50 5 2.50 13.00 Ø0.60
EE16-007 卧式插针 16.5 19.0 13.5 5 2.50 5 2.50 15.50 Ø0.70
EE19-001 立式插针 19.5 14.0 16.0 3 5.00 3 5.00 11.00 Ø0.70
EE19-002 立式插针 22.0 16.0 19.0 5 4.00 5 4.00 10.00 Ø0.80
EE19-003 立式插针 19.5 14.0 16.0 2 8.00 2 8.00 9.60 Ø0.70
EE19-004 立式插针 19.5 14.0 17.0 4 4.00 3 4.00 11.00 Ø0.70
EE19-005 立式插针 19.5 15.7 19.0 6 2.70 4 3.50 12.10 Ø0.60
EE19-006 卧式插针 19.5 16.3 12.5 4 4.78 4 4.78 12.75 Ø0.70
EE19-007 卧式插针 19.5 17.3 12.5 5 3.00 5 3.00 12.50 Ø0.70
EE19-008 卧式插针 19.5 17.4 11.1 6 2.50 4 2.5/7.5 14.20 SQ0.40*0.60
EE19-009 卧式插针 19.5 16.0 14.8 4 4.75 4 4.75 12.50 Ø0.70
EE20-001 立式插针 21.0 16.0 21.0 3 5.00 3 5.00 12.50 Ø0.70
EE22-001 立式插针 23.0 16.0 23.0 5 4.00 5 4.00 10.00 Ø0.80
EE22-002 卧式插针 23.0 16.0 13.2 4 4.25/4.8 4 4.25/4.8 13.00 Ø0.70
EE22-003 卧式插针 23.0 22.5 20.5 5 4.00 4 5.00 17.00 Ø0.60
EE25-001 立式插针 26.0 17.2 22.0 4 5.00 4 5.00 12.00 Ø0.80
EE25-002 立式插针 26.0 20.5 22.0 5 5.00 5 5.00 15.00 Ø0.80
EE25-003 立式插针 26.0 25.0 15.6 5 5.0/6.0 5 5.0/6.0 22.00 SQ0.64*0.64
EE25-004 卧式插针 26.0 20.5 17.5 4 4.00 4 4.00 15.00 Ø0.80
EE25-005 卧式插针 26.3 27.5 25.0 4 5.00 4 5.00 20.00 Ø0.80
EE28-001 立式插针 29.0 22.0 21.0 5 5.00 5 5.00 17.50 Ø0.80
EE30-001 立式插针 31.0 22.0 27.0 5 5.00 5 5.00 17.50 Ø0.80
EE33-001 立式插针 34.0 29.0 32.0 6 5.00 6 5.00 22.70 Ø0.80
EE40-001 立式插针 41.0 28.0 34.0 6 5.00 6 5.00 22.60 Ø0.80
EE40-002 卧式插针 41.0 32.0 28.5 7 5.00 7 5.00 25.80 Ø0.80
EE42-001 立式插针 43.0 39.0 44.0 6 5.00 6 5.00 32.20 Ø1.00
EE42-002 卧式插针 43.0 40.0 36.5 8 5.00 8 5.00 35.00 Ø1.00
EE42-003 卧式插针 43.0 44.0 39.0 8 5.00 8 5.00 35.50 Ø1.00
EE55-001 卧式插针 56.0 56.0 48.0 7 5.00 7 5.00 40.00 Ø1.00
EE65-001 立式插针 66.0 55.0 65.0 10 5.0/8.0 6 5.0/24.5 45.50 Ø1.30



The post RM transformer | RM系列变压器 first appeared on BaoHui Tech.

]]> EE Transformer | EE系列变压器 https://sz-baohui.com/product/ee-transformer/ Wed, 23 Feb 2022 06:58:26 +0000 https://sz-baohui.com/?post_type=product&p=920 FEATURES
  • Wide working voltage range
  • Highpower
  • Small volume
  • High efficiency

OPTIONS

  • Bulk packaging is standard
  • Custom design available

APPLICATIONS

  • AC-DCconverters
  • DC-DCconverters
  • Switch Power supplies
  • Communication equipment
  • Automotive electronics and other fields

The post EE Transformer | EE系列变压器 first appeared on BaoHui Tech.

]]> Click to check the product PDF: EE

规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm)
A B C 数量 针距(mm) 数量 针距(mm)
EE05-001 卧式贴片 6.0 5.2 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55
EE05-002 卧式贴片 6.0 5.5 5.0 3 1.85 3 1.85 7.70 SQ0.20*0.55
EE08-001 立式插针 8.8 8.0 9.2 3 2.50 3 2.50 6.00 Ø0.50
EE08-002 立式插针 8.8 8.0 10.0 3 2.50 3 2.50 6.00 SQ0.40*0.40
EE08-003 卧式插针 8.8 9.0 9.5 2 5.00 2 5.00 6.80 SQ0.40*0.40
EE08-004 卧式插针 8.8 9.0 9.5 3 2.50 3 2.50 7.00 Ø0.50
EE10-001 立式插针 10.5 10.0 11.0 4 2.50 4 2.50 8.00 Ø0.50
EE10-002 卧式插针 11.0 12.5 11.0 4 2.50 4 2.50 10.50 Ø0.60
EE10-003 卧式插针 11.0 11.5 11.0 2 5.00 2 5.00 9.00 Ø0.60
EE10-004 卧式插针 11.0 11.5 11.0 2 5.00 2 5.00 9.00 Ø0.60
EE10-005 卧式插针 11.0 12.5 13.5 4 2.50 4 2.50 10.40 Ø0.60
EE12-001 卧式插针 12.5 15.0 9.3 2 6.00 2 6.00 12.00 SQ0.50*0.50
EE12.5-001 立式插针 13.0 12.5 9.0 5 2.50 5 2.50 7.50 Ø0.60
EE12.7-001 立式插针 12.8 12.3 11.0 5 2.50 5 2.50 8.50 Ø0.60
EE13-001 立式插针 10.5 12.5 13.0 3 3.00 3 3.00 9.00 Ø0.60
EE13-002 立式插针 13.0 12.5 13.5 5 2.50 5 2.50 8.50 SQ0.50*0.50
EE13-003 立式插针 15.5 16.5 14.5 5 2.50 2 3.00 13.00 Ø0.60
EE13-004 卧式插针 14.0 14.0 13.5 5 2.50 5 2.50 10.30 Ø0.60
EE13-005 卧式插针 14.0 17.8 13.5 5 2.50 4 3.00 15.50 Ø0.60
EE13-006 卧式插针 14.0 19.9 13.8 5 2.70 2 9.00 16.00 Ø0.60
EE14-001 卧式插针 15.0 15.0 8.0 2 6.00 2 6.00 12.00 Ø0.60
EE16-001 立式插针 16.5 12.5 15.0 3 3.00 3 3.00 9.00 Ø0.60
EE16-002 立式插针 16.5 13.1 18.0 5 3.20 5 3.20 10.60 SQ0.50*0.50
EE16-003 立式插针 16.5 12.5 15.0 2 9.00 2 9.00 9.60 Ø0.60
EE16-004 卧式插针 19.5 18.5 16.5 5 3.25 6 3.25 15.50 Ø0.80
EE16-005 卧式插针 16.5 15.0 14.5 4 3.00 4 3.00 11.00 Ø0.60
EE16-006 卧式插针 16.5 16.0 14.5 5 2.50 5 2.50 13.00 Ø0.60
EE16-007 卧式插针 16.5 19.0 13.5 5 2.50 5 2.50 15.50 Ø0.70
EE19-001 立式插针 19.5 14.0 16.0 3 5.00 3 5.00 11.00 Ø0.70
EE19-002 立式插针 22.0 16.0 19.0 5 4.00 5 4.00 10.00 Ø0.80
EE19-003 立式插针 19.5 14.0 16.0 2 8.00 2 8.00 9.60 Ø0.70
EE19-004 立式插针 19.5 14.0 17.0 4 4.00 3 4.00 11.00 Ø0.70
EE19-005 立式插针 19.5 15.7 19.0 6 2.70 4 3.50 12.10 Ø0.60
EE19-006 卧式插针 19.5 16.3 12.5 4 4.78 4 4.78 12.75 Ø0.70
EE19-007 卧式插针 19.5 17.3 12.5 5 3.00 5 3.00 12.50 Ø0.70
EE19-008 卧式插针 19.5 17.4 11.1 6 2.50 4 2.5/7.5 14.20 SQ0.40*0.60
EE19-009 卧式插针 19.5 16.0 14.8 4 4.75 4 4.75 12.50 Ø0.70
EE20-001 立式插针 21.0 16.0 21.0 3 5.00 3 5.00 12.50 Ø0.70
EE22-001 立式插针 23.0 16.0 23.0 5 4.00 5 4.00 10.00 Ø0.80
EE22-002 卧式插针 23.0 16.0 13.2 4 4.25/4.8 4 4.25/4.8 13.00 Ø0.70
EE22-003 卧式插针 23.0 22.5 20.5 5 4.00 4 5.00 17.00 Ø0.60
EE25-001 立式插针 26.0 17.2 22.0 4 5.00 4 5.00 12.00 Ø0.80
EE25-002 立式插针 26.0 20.5 22.0 5 5.00 5 5.00 15.00 Ø0.80
EE25-003 立式插针 26.0 25.0 15.6 5 5.0/6.0 5 5.0/6.0 22.00 SQ0.64*0.64
EE25-004 卧式插针 26.0 20.5 17.5 4 4.00 4 4.00 15.00 Ø0.80
EE25-005 卧式插针 26.3 27.5 25.0 4 5.00 4 5.00 20.00 Ø0.80
EE28-001 立式插针 29.0 22.0 21.0 5 5.00 5 5.00 17.50 Ø0.80
EE30-001 立式插针 31.0 22.0 27.0 5 5.00 5 5.00 17.50 Ø0.80
EE33-001 立式插针 34.0 29.0 32.0 6 5.00 6 5.00 22.70 Ø0.80
EE40-001 立式插针 41.0 28.0 34.0 6 5.00 6 5.00 22.60 Ø0.80
EE40-002 卧式插针 41.0 32.0 28.5 7 5.00 7 5.00 25.80 Ø0.80
EE42-001 立式插针 43.0 39.0 44.0 6 5.00 6 5.00 32.20 Ø1.00
EE42-002 卧式插针 43.0 40.0 36.5 8 5.00 8 5.00 35.00 Ø1.00
EE42-003 卧式插针 43.0 44.0 39.0 8 5.00 8 5.00 35.50 Ø1.00
EE55-001 卧式插针 56.0 56.0 48.0 7 5.00 7 5.00 40.00 Ø1.00
EE65-001 立式插针 66.0 55.0 65.0 10 5.0/8.0 6 5.0/24.5 45.50 Ø1.30



The post EE Transformer | EE系列变压器 first appeared on BaoHui Tech.

]]> EQ High Frequency Transformer | EQ系列 高频变压器 https://sz-baohui.com/product/er%e7%b3%bb%e5%88%97-%e9%ab%98%e9%a2%91%e5%8f%98%e5%8e%8b%e5%99%a8/ Sat, 19 Feb 2022 08:41:22 +0000 https://sz-baohui.com/?post_type=product&p=904 EQ High Frequency Transformer

Suitable for switching power supply, adapter, charger transformer.
Widely used in communication, LED, lighting, home appliances, digital products, PC and industrial equipment, automotive electronics and other fields.

The post EQ High Frequency Transformer | EQ系列 高频变压器 first appeared on BaoHui Tech.

]]> ''/



The post EQ High Frequency Transformer | EQ系列 高频变压器 first appeared on BaoHui Tech.

]]> ER High Frequency Transformer | ER系列 高频变压器 https://sz-baohui.com/product/er-transformer/ Fri, 18 Feb 2022 23:58:27 +0000 https://sz-baohui.com/product/hoodie-with-logo/ ER High Frequency Transformer

Suitable for switching power supply, adapter, charger transformer.
Widely used in communication, LED, lighting, home appliances, digital products, PC and industrial equipment, automotive electronics and other fields.

The post ER High Frequency Transformer | ER系列 高频变压器 first appeared on BaoHui Tech.

]]>

规格 封装形式 长(mm) 宽(mm) 高(mm) 一次侧排针 二次侧排针 排距(mm) 针径(mm) 特别说明
A B C 数量 针距(mm) 数量 针距(mm)
ER9.5-001 立式贴片 10.0 11.5 6.0 4 2.00 4 2.00 11.50 SQ0.25*0.70 贴片
ER9.5-002 立式贴片 10.0 11.5 6.0 4 2.00 4 2.00 11.50 SQ0.25*0.70 贴片
ER11.5-001 立式贴片 12.0 12.2 6.0 3 4.00 3 4.00 12.20 SQ0.25*0.70 贴片
ER11.5-002 立式贴片 12.0 12.2 6.0 3 4.00 3 4.00 12.20 SQ0.25*0.70 贴片
ER11.5-003 立式贴片 12.0 12.2 6.0 5 2.00 5 2.00 12.20 SQ0.25*0.70 贴片
ER11.5-004 立式贴片 12.0 12.2 6.0 5 2.00 5 2.00 12.20 SQ0.25*0.70 贴片
ER14.5-001 立式贴片 15.0 16.0 7.0 5 2.50 5 2.50 16.00 SQ0.30*0.70 贴片
ER20-001 立式插针 20.5 14.5 8.5 5 2.50 5 2.50 16.50 SQ0.50*0.50 贴片
ER20-002 立式贴片 20.5 14.5 8.5 5 2.50 5 2.50 24.80 SQ0.50*0.50 贴片
ER20-003 立式插针 20.5 14.5 8.5 3 3.2/5.0 2 5.00 15.00 SQ0.50*0.50
ER25-001 立式插针 25.5 18.0 10.0 5 3.50 5 3.50 14.00 Ø0.60
ER28-001 立式插针 28.5 18.0 11.0 5 3.50 5 3.50 14.00 Ø0.60
ER28-002 立式插针 28.5 18.0 19.0 5 5.00 5 5.00 17.50 Ø0.80
ER28-003 立式插针 28.5 22.0 22.0 5 5.00 5 5.00 17.80 Ø0.80
ER28-004 立式插针 28.5 23.2 30.0 5 5.00 5 5.00 17.60 Ø0.80
ER28-005 立式插针 28.5 24.2 37.5 6 5.00 6 5.00 17.60 Ø0.80
ER28-006 立式插针 28.5 24.2 37.5 5 5.00 5 5.00 17.60 Ø0.80
EC28-001 卧式插针 29.6 29.0 24.0 6 5.00 6 5.00 25.00 Ø0.80
EC28-002 卧式插针 29.6 36.5 25.3 6 5.00 6 5.00 30.00 Ø0.80
EC35-001 卧式插针 40.3 44.0 18.0 8 5.00 8 5.00 35.00 Ø0.80
EC35-002 卧式插针 35.5 40.0 28.0 7 5.00 7 5.00 34.00 Ø0.80
EC40-001 卧式插针 40.5 43.5 31.0 8 5.00 8 5.00 35.00 Ø1.00
EC40-002 卧式插针 42.5 46.0 35.5 8 5.00 8 5.00 35.50 Ø1.00
EC40-003 卧式插针 42.5 55.0 36.0 8 5.00 8 5.00 46.00 Ø1.00
ER42-003 立式插针 42.5 30.0 47.0 7 5.00 7 5.00 25.00 Ø1.00
ER42-004 立式插针 42.5 38.0 47.0 7 5.00 7 5.00 30.00 Ø1.00
ER43-001 立式插针 43.5 30.0 49.0 7 5.00 7 5.00 25.00 Ø1.00
EC49-001 卧式插针 49.5 57.0 36.5 9 5.00 9 5.00 45.00 Ø1.00



''/



The post ER High Frequency Transformer | ER系列 高频变压器 first appeared on BaoHui Tech.

]]>
